3D Security Phased Array Radar Sand Resistant 360° Coverage

Brand Name : HYH

Place of Origin : Chengdu

MOQ : 1

Price : Negotiable

Payment Terms : L/C,T/T

Supply Ability : 10sets per Month

Delivery Time : 30

Target Tracking : Multiple

Tracking Mode : TWS

Beam Steering : Electronic

Frequency Range : 2-18 GHz

Transmit Power : 10 kW

Scanning Range : 0.24km-26km

Material : aluminum copper

Target Radial Velocity : 0.8m/s-100m/s

Technical System : DBF

Operational Modes : Air-to-Air, Air-to-Ground, Sea-to-Air

Range Resolution : 1 meter

Pitch Coverage : 0°-30°

Pulse Repetition Frequency : 10 kHz

Antenna Speed : ≤10rpm

Blind Range : 240m

Contact Now

All-Weather 3D Security Radar | -40°C to 60°C Operation | Dust/Rain/Sand Resistant


Product Overview
The HYH 223-5C1K-3D is a cutting-edge security surveillance radar system designed for detecting low-altitude drones and airborne threats. Built with advanced phased array and pulse Doppler technology, this C-band radar ensures superior performance in all weather conditions. Unlike its single-panel counterpart (HYH 223-1C1K), the 5C1K-3D features a 4-panel phased array configuration paired with a dedicated 3D height-finding radar, enabling 360° azimuth coverage and precise altitude measurement for comprehensive airspace monitoring.

Key Features

  • 360° + 3D Detection: Four-panel phased array system with integrated height-finding radar for full-coverage surveillance.

  • High Precision: ≤10m distance accuracy, ≤1.0° azimuth accuracy, and ≤0.2m/s speed precision.

  • Advanced MIMO Technology: Multi-Input Multi-Output system enhances target resolution and tracking.

  • Wide Detection Range: Detects drones as small as DJI Phantom 3/4 (RCS≈0.01m²) up to 1.2km.

  • All-Weather Reliability: Operates in extreme temperatures (-40°C to +60°C) with rain, dust, sand, and corrosion resistance.

  • Compact & Robust: Lightweight (≤70kg) and durable design for easy deployment in critical environments.

Applications
Ideal for safeguarding high-security zones:

  • Airports

  • Military Bases

  • Border Surveillance

  • Critical Infrastructure Protection

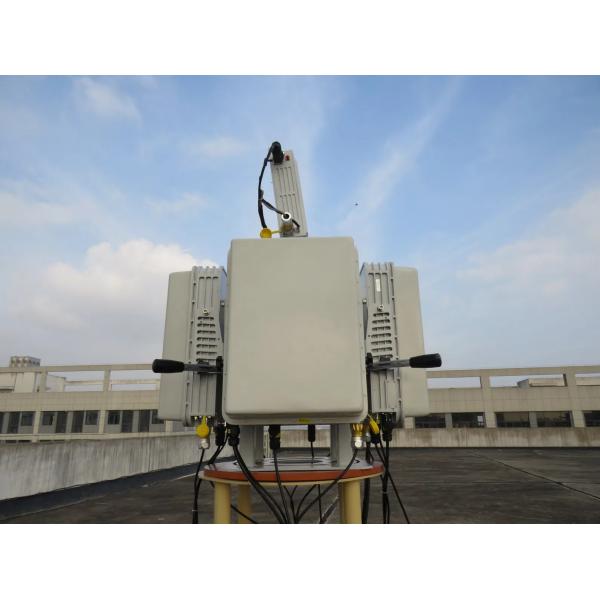

  • 3D Security Phased Array Radar Sand Resistant 360° Coverage

Technical Specifications

Parameter Specification
Operating Frequency C-Band (5.5–5.8 GHz)
Detection Range 1.2 km (DJI Phantom 3/4, Mavic series)
Min. Detection Range ≤100 m
Azimuth Coverage 360° (4-panel phased array) + 3D height measurement
Elevation Coverage 40°
Data Rate ≤1.5 seconds
Peak Output Power 4W per panel
Power Supply AC220V / 250W
Interface Ethernet (UDP protocol)
Dimensions 725mm × 725mm × 735mm (2D mode) / 725mm × 725mm × 1400mm (3D mode)
Operating Temp. -40°C to +60°C
Environmental Rating Rainproof, Dustproof, Sandproof, Moisture-resistant, Mold-resistant, Salt-resistant

Why Choose the HYH 223-5C1K-3D?
Combining high-speed data processing, military-grade durability, and 3D spatial tracking, this radar delivers unmatched situational awareness for counter-drone operations and airspace security. Its modular design ensures rapid deployment and integration with existing defense systems, making it a critical asset for modern surveillance needs.
